P200A21 Fault Expertly Fixed After Multiple Issues Identified

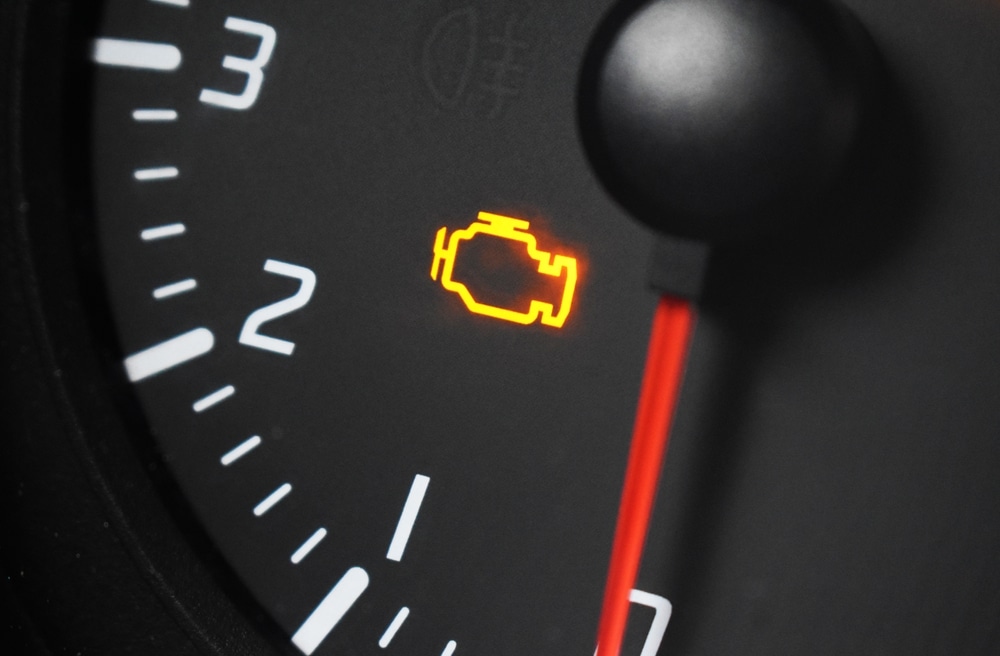

Mrs V’s Mercedes had become increasingly unreliable. At times, the engine refused to start. On other occasions, it started but wouldn’t shift out of Park. As if that wasn’t enough, the dashboard glowed with the engine management light, transmission warning, and tyre pressure management system alert.
Before long, the Mercedes was unusable. For more than five weeks, it stayed on Mrs V’s driveway, causing disruption to her routine and leaving her unsure if it could ever be trusted again. That’s when she brought it to Somerset Vehicle Services in Bridgwater.
At SVS, we specialise in tackling difficult Mercedes problems. By following a clear, structured diagnostic process, we dig beneath the symptoms, uncover the true faults, and create a repair plan that works first time. With Mrs V’s car, that meant going well beyond the dashboard alerts in search of the real cause of the issues.
Early Testing Findings: P200A21, 056200 and 0C2A00
When Mrs V’s Mercedes was brought to Somerset Vehicle Services in Bridgwater, it had been off the road for several weeks. The car wouldn’t move out of Park, and the dashboard was alight with a cluster of warning lights.
Our first round of checks involved running an early scan of the system. This revealed three stored fault codes, each pointing to a different system in the vehicle:
- P200A21 – Charge movement flap malfunction
This fault relates to the inlet manifold. Inside the inlet manifold are charge movement flaps that manage how air enters the engine. If they don’t operate as expected, the ECU logs a code. For the driver, this can mean poor running and an engine management light on the dashboard. - 056200 – Circuit 87 undervoltage (transmission)
Circuit 87 is a power feed that turns on with the ignition, for key modules like the transmission controller. If this supply is weak or unstable, the system can’t operate correctly. The fault code showed the transmission control module wasn’t getting the voltage it required to operate. And without the correct supply, the gearbox cannot engage, leaving the car stuck in Park and unable to select Drive or Reverse. - 0C2A00 – Oil pressure low
The scan also highlighted a low oil pressure warning. This can be a real red flag since, if not investigated, insufficient oil pressure can lead to engine damage.
For our expert technicians at SVS, these codes were useful early clues, but they didn’t give the full explanation. Fault codes highlight what has been detected — not why it’s happening. To uncover the underlying cause, further testing was essential.
How We Got to the Bottom of the Mercedes Faults
After the codes were recorded, the next step was to carry out a systematic evaluation. This process ensures that every possible cause is checked until the underlying issues are fully understood.
Here’s how we approached Mrs V’s Mercedes:
- Transmission voltage analysis – The serial data showed the transmission module reporting only 9 volts. Direct testing at the connector, however, gave a reading of 13.4 volts. That proved the wiring and feed were fine, leaving the control module itself at fault.
- Inlet manifold flap activation – With the help of our test equipment, we ran an activation check on the charge movement flap. Testing confirmed the flap was getting power correctly, yet it refused to move, showing the fault was mechanical inside the manifold rather than electrical.
- Oil pressure verification – Because the ECU had stored a low oil pressure warning, we compared both the oil level and pressure readings against Mercedes benchmarks. All results were within specification, confirming this was a secondary alert rather than a separate system failure.
By working carefully through each system, our team at SVS were able to move past the initial scan results and confirm the true causes of each fault with confidence.
If your Mercedes is suffering from similar issues, call SVS on 01458 210402. Our expert team will trace the fault and deliver a reliable first-time fix.
Repairs That Cleared the Fault Codes for Good
With the investigation complete, we had a clear plan to follow. Each fault required its own fix, which made this a more complex case than usual. The first action was to call Mrs V. We explained what we had discovered, outlined the repair work needed, and made sure she was happy before we began. We’d never begin a fix without the consent of our customer.
Once authorised by Mrs V, our expert technicians at SVS got to work, guided by Mercedes technical data and dealer-level diagnostic equipment.
Here’s what we completed:
- Transmission control module (mechatronics unit) – Despite a healthy 13.4-volt supply at the connector, the module was still reporting just 9 volts in live data. This mismatch highlighted an internal failure. We fitted a brand-new mechatronics unit, completed coding and adaptation procedures, and updated the gearbox software so it integrated correctly with the rest of the car.
- Inlet manifold and charge movement flaps – Tests showed that power and ground were present, but the flaps failed to move. This confirmed the electrics were fine and that the issue was mechanical inside the manifold. We fitted a new inlet manifold complete with fresh flaps, and follow-up testing confirmed smooth operation. The P200A21 code cleared successfully.
- Oil system recheck – Because a low oil pressure warning had been logged, we rechecked both the oil level and pressure. All readings matched Mercedes specifications, confirming the fault was a secondary effect rather than a separate oil system issue.
- Tyre pressure monitoring system reset – As the final stage, we recalibrated the TPMS and cleared the fault, leaving the dashboard free of warnings.
Every stage of the repair was followed up with validation tests, so we could be sure that the faults were eliminated and no new errors appeared. This structured approach ensured every issue was resolved in one visit, giving Mrs V complete confidence in the result.
From Weeks Off the Road to Running Like New
After sitting unused for more than five weeks, Mrs V’s Mercedes was finally back on the road. The transformation was obvious: it started smoothly, shifted cleanly out of Park, and the dashboard was completely free of warning lights.
It had been a complex repair — replacing the transmission control module and the inlet manifold, updating and coding the software, and carrying out a series of tests throughout the fix. Thanks to the structured process at SVS, the fix was completed in a single visit, restoring the Mercedes to peak condition.
For Mrs V, the outcome was a major relief. With a courtesy car keeping her mobile throughout the repair and her own car running like new again, she could drive with complete confidence.
Specialist Help for Mercedes Inlet Manifold and Transmission Faults
If your Mercedes refuses to start, won’t select gears, or shows a cluster of warning lights, it’s not an issue to delay. Problems with the inlet manifold or transmission control module can escalate quickly, risking more serious damage and leaving you stranded if not resolved.
At Somerset Vehicle Services in Bridgwater, our skilled team specialise in unravelling tricky Mercedes cases. Using our extensive experience, dealer-level equipment and technical data, we get to the root of the problem and deliver a first-time fix.
When you choose us, you benefit from:
- 12-month parts and labour guarantee
- Free courtesy car to keep you mobile
- Expertise across the full Mercedes range
- Access to the latest Mercedes software and technical updates
