Diesel Fuel Filter
Can one filter really decide whether your diesel car runs smoothly or ends up in the local garage?
Your diesel fuel filter helps prevent particles and moisture from reaching more critical parts of your diesel fuel system, such as the high-pressure pump and injectors. Without it, contamination builds, performance suffers, and costly repairs become more likely.
Which is the last thing you want, right?
Throughout this guide, you’ll discover where the diesel fuel filter is fitted, what it does, the problems linked to poor maintenance, and why replacement is so important.
When was your diesel fuel filter last serviced? Call Somerset Vehicle Services, Bridgwater, today on 01458 210402 to book your appointment.
Diesel fuel filter location explained

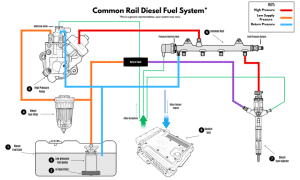

Your diesel fuel filter (part 4 in the diagram) is found on the low-pressure side of the system, between the tank and the high-pressure pump.
In most modern diesel vehicles, you’ll find it placed in the engine bay to make servicing simpler.
Many fuel systems also include a coarse strainer inside the tank (part 2), which traps larger particles before they can reach the main filter.
For a clearer understanding of the full setup, see our Diesel Fuel System Guide.
How the diesel fuel filter protects your system
Your diesel fuel filter delivers protection to your vehicle’s fuel system in two important ways:
- Capturing contaminants: Your vehicle’s diesel fuel filter traps particles and debris in the fuel before it gets further through the system, keeping components like injectors or the high-pressure pump safe. They could cause wear, blockages, and costly repairs if allowed through.
- Separating water: Diesel often carries small traces of water. Your car’s diesel fuel filter removes this moisture before it enters the system, preventing corrosion and damage.
Your filter is one of the key safeguards against expensive fuel system failures. Always keep on top of your vehicle’s maintenance with regular diesel servicing.
Book your diesel car service today with Somerset Vehicle Services, Bridgwater on 01458 210402.
Diesel fuel filter types explained
Modern diesel systems typically use a fine fuel filter (part 4 in the diagram), though construction can differ.
Here are the most common options:

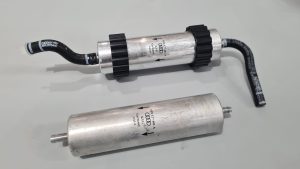

- Sealed filter units: This type of diesel fuel filter is a sealed housing with the media inside; the whole unit is swapped as one piece. This design is more common in older or heavy-duty vehicles and may include integrated drain bowls or water separation.

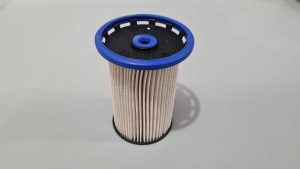

- Cartridge modules: The most widely used type of diesel fuel filter today. It’s often a fixed housing made of plastic or aluminium that contains a pleated, multi-layer element that captures dirt and removes water. Many housings also feature sensors, valves, or a hand primer. During servicing, only the inner filter element is replaced.
In addition, most diesel vehicles use a coarse strainer inside the tank (part 2 in the diagram), which stops larger debris before it gets to the main diesel fuel filter.
Timely replacement ensures your fuel filter keeps protecting the diesel system. Don’t risk skipping your servicing; it could land you with a large repair bill.
Call Somerset Vehicle Services, Bridgwater, today on 01458 210402
Problems caused by diesel fuel filter faults
A failing diesel fuel filter can cause several issues in your vehicle:
- Restricted filter: As the diesel fuel filter becomes blocked, fuel flow to the high-pressure pump drops. This can cause extended cranking, sluggish performance or total no-start.
- Strainer blockage: A clogged in-tank strainer forces the lift pump to work harder, often resulting in noisy operation and inconsistent diesel supply.
- Air leaks: Damaged seals or poor fitting allow air into the low-pressure line, creating hesitation, stalling, or longer starting times.
- Water ingress: If water isn’t removed, it can cause corrosion throughout the diesel system, affecting parts such as the injectors and high-pressure fuel pump, leading to costly failures.
- Incorrect fitment: A mismatched or poorly fitted diesel fuel filter can cause air ingress, fuel leaks, or contaminated diesel bypassing the fuel filter altogether.
When did you last replace your diesel filter? Call Somerset Vehicle Services, Bridgwater, today on 01458 210402 to arrange your service.
Diesel fuel filter replacement intervals
There’s no single mileage figure for diesel fuel filter replacement. The correct interval always depends on the manufacturer’s service schedule, and this will vary between vehicles.
Key reminders:
- Correct filter: Always fit the correct type of diesel fuel filter for your vehicle. Failing to do so can result in costly complications.
- High-quality filter: Lower-grade filters can restrict flow, leak, or fail to separate water effectively.
- Water draining: Some diesel fuel filters with drains or sensors should be checked during servicing and emptied when required.
- Priming step: After fitting a new diesel fuel filter, your vehicle’s diesel system should be primed using the vehicle’s pumps or a hand primer. Missing this step can lead to air pockets, causing starting issues or pump damage.
- Decline over time: Water separation efficiency begins at over 95% in a new filter but falls to about 70% by the end of its life.
Staying on top of diesel fuel filter changes is an important part of preventative maintenance. By following the manufacturer’s servicing schedule, you reduce the chance of fuel system issues and help your diesel engine continue running at its best.
Protecting your diesel system
Timely diesel fuel filter replacement is a vital step in preventative maintenance. Following the manufacturer’s servicing schedule reduces the risk of fuel system damage and keeps your engine running reliably.
Preventative action now helps avoid expensive problems later. The last thing you want is a costly repair bill when a diesel fuel filter replacement is relatively cheap in comparison.
And when it comes to professional servicing, drivers across Somerset choose Somerset Vehicle Services, Bridgwater.
Why drivers choose Somerset Vehicle Services
Local drivers in the Bridgwater area come back to us because we provide:
- Diesel servicing is carried out by highly trained technicians.
- A full 12-month parts and labour guarantee.
- Courtesy cars to keep you mobile while we work.
We’re proud to hold a {{average-rating}}⭐ Google rating from {{review-count}} happy customers across Bridgwater, Taunton and Glastonbury.
Want to keep your diesel vehicle running at its best? Call Somerset Vehicle Services, Bridgwater, today on 01458 210402 to book your service.
Frequently asked diesel filter questions
What does a diesel fuel filter do?
Your car’s diesel fuel filter removes particles and water from the fuel before they reach vital parts such as the injectors and high-pressure pump. Without it, contaminants can lead to corrosion, wear, blockages, and costly system failures.
Can a blocked diesel filter damage the pump?
Yes. A restricted diesel fuel filter reduces fuel flow, which forces the pump to work harder. This can result in early wear or failure, which is significantly more expensive to fix than a filter change.
Where is the diesel fuel filter located?
The diesel fuel filter is usually installed on the low-pressure side of the system, positioned between the fuel tank and the high-pressure pump. In many modern vehicles, it sits in the engine bay for easier servicing. Most setups also include a coarse strainer inside the tank, designed to trap larger debris before it reaches the main diesel fuel filter.
What are the symptoms of a blocked diesel filter?
Common signs of a blocked diesel fuel filter include sluggish performance, loss of power, difficulty starting, hesitation, or stalling. Because these symptoms can also be caused by other issues, professional advice is essential.
When should my diesel fuel filter be replaced?
There is no universal diesel fuel filter replacement time. The safest approach is to follow your vehicle manufacturer’s service schedule, as the advice will vary depending on your vehicle’s make, model, and year.
